SeAT - forum: Seat 5 DOCKER Styling step by step guide. - Page 1

Hi, A lot of you asked for a help with custom css files and styling so I am posting my own way how I fixed this issue. Create custom directory in /opt/seat-docker/ and add files to new directory > custom-layout-mini.css > custom-layout.css Create docker-compose.override.yml in /opt/seat-docker/ directory and add to it:

version: "3.2"

services:

  front:
    volumes:
#      - /opt/seat-docker/custom/custom-layout-mini.css:/var/www/seat/public/custom-layout-mini.css
#      - /opt/seat-docker/custom/custom-layout.css:/var/www/seat/public/custom-layout.css
#      - /opt/seat-docker/custom/logo.png:/var/www/seat/public/logo.png

Example for -> custom-layout-mini.css

/**
 * SeAT login page layout
 */
@media all {
    html, body {
        height: auto;
    }

    .login-page, .register.body {
        color: rgb(255,255,255);
        background-image: url(https://web.ccpgamescdn.com/aws/eveonline/sso/background.jpg);
        background-position: center center;
        background-repeat: no-repeat;
        background-size: cover;
        background-attachment: fixed;
    }

    .login-box, .register-box {
        width: 360px;
        margin: 0;
        position: absolute;
        top: 50%;
        left: 50%;
        background: rgba(48,48,48,.8);
        transform: translate(-50%, -50%);
        border: 5px solid #ecf0f1;
        border-radius: 40px;
        box-shadow: 0 1px 1px rgba(0,0,0,0.05);
    }

    .login-box>div>img, .register-logo {
        font-size: 35px;
        text-align: center;
        margin-bottom: 25px;
        font-weight: 300;
        margin-top: 50px;
    }

    .login-box>div>img, .register-logo::before {
        display: block;
        width: 128px;
        height:128px;
        margin: 0 auto;
        content: url("logo.png");
        border-radius: 0%;
        margin-bottom: 0px;
        margin-top: 50px;
    }

 /* Remove or comment out this rule to remove the sign */

    .login-box > div::after {
        content: "Your Corp Name";
        display: block;
        text-align: center;
        font-size: 24px;
        margin-top: 0px;
    }


    .login-box-body, .register-box-body {
        background: transparent;
        padding: 20px;
        border-top: 0;
        color: inherit;

    }

    .login-box .navbar-brand {
        display: none;
    }

}

In section:

    .login-page, .register.body {
        color: rgb(255,255,255);
        background-image: url(https://web.ccpgamescdn.com/aws/eveonline/sso/background.jpg);
        background-position: center center;
        background-repeat: no-repeat;
        background-size: cover;
        background-attachment: fixed;
    }

Change the url for the backgroud image that you want. In section:

     .login-box > div::after {
        content: "Your Corp Name";
        display: block;
        text-align: center;
        font-size: 24px;
        margin-top: 0px;
    }

Change Your Corp Name for your corp name 😄 Now let's move to your corp logo. go to /opt/seat-docker/custom/ directory and download your corp logo. Use wget https://images.evetech.net/corporations/<YOUR CORPORATION ID>/logo?size=128 and mv 'logo?size=128' logo.png to change that weird name. ⚠️ Remember to change use correct numbers for your corp.

Final step. Go to /opt/seat-docker/ and edit docker-compose.traefik.yml in your docker-compose.traefik, there is this line:

"traefik.http.middlewares.seat-security.headers.contentSecurityPolicy=default-src 'none'; connect-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline' https://fonts.googleapis.com/ https://fonts.bunny.net/ https://snoopy.crypta.tech/; img-src 'self' data: https://images.evetech.net/ https://img.shields.io/; font-src 'self' https://fonts.gstatic.com/ https://fonts.bunny.net/; manifest-src 'self'"

replace it with this:

"traefik.http.middlewares.seat-security.headers.contentSecurityPolicy=default-src 'none'; connect-src 'self'; script-src 'self' 'unsafe-inline' 'unsafe-eval'; style-src 'self' 'unsafe-inline' https://fonts.googleapis.com/ https://fonts.bunny.net/ https://snoopy.crypta.tech/; img-src 'self' data: https://image.eveonline.com/ https://images.evetech.net/ https://img.shields.io/ https://web.ccpgamescdn.com/; font-src 'self' https://fonts.gstatic.com/ https://fonts.bunny.net/; manifest-src 'self'"

All done! Now use docker compose -f docker-compose.yml -f docker-compose.override.yml -f docker-compose.mariadb.yml -f docker-compose.traefik.yml up -d and check if that works!

I hope that helps a lot of you! I am really bad at writing guides so sorry if something is not clear enough. You can ask questions in here.

Seat 5 DOCKER Styling step by step guide.

Im still not able to get he logo to change..... not sure why... Is anyone else having the same issue or not?

What seat is that? Docker or?

Post what error your are having. Inspect that element

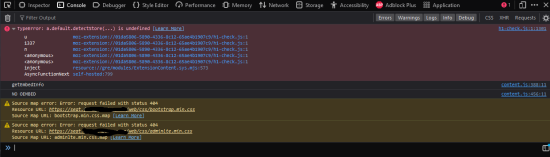

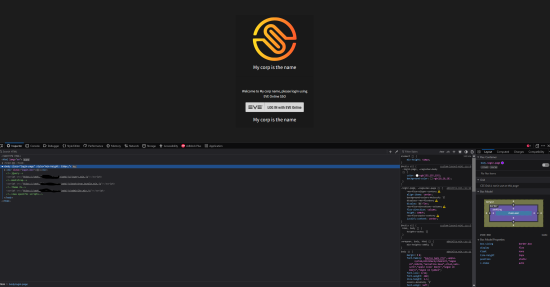

Docker. Cant remember if i messed with the docker container itself last month when trying to figure out how to do it my self... i did "repulled" the docker, but im not sure if that helped.. as you can see i dont get any errors..

I checked the css code 5 times... and it looks correct

@media all {
    html, body {
        height: auto;
    }

    .login-page, .register.body {
        color: rgb(255,255,255);
    background-color: rgb(28,28,28);
/*
     *  background-image: url(https://web.ccpgamescdn.com/aws/eveonline/sso/background.jpg);
     *  background-position: center center;
     *  background-repeat: no-repeat;
     *  background-size: cover;
     *  background-attachment: fixed;
*/
    }

    .login-box, .register-box {
        width: 360px;
        margin: 0;
        position: absolute;
        top: 50%;
        left: 50%;
        background: rgba(0,0,0,.1);
        transform: translate(-50%, -50%);
/*      border: 5px solid #ecf0f1;
  *     border-radius: 40px;
  *     box-shadow: 0 1px 1px rgba(0,0,0,0.05);
*/
    }

    .login-logo>dev>img, .register-logo {
        font-size: 35px;
        text-align: center;
        margin-bottom: 25px;
        font-weight: 300;
        margin-top: 50px;
    }

    .login-logo>dev>img, .register-logo::before {
        display: block;
        width: 128px;
        height:128px;
        margin: 0 auto;
        content: url("logo.png");
        border-radius: 0%;
        margin-bottom: 0px;
    margin-top: 50px;
    }

    .login-box > div::after {
        content: "My corp is the name";
        display: block;
        text-align: center;
        font-size: 24px;
        margin-top: 0px;
    }

    .login-box-body, .register-box-body {
    text-align: center;
        background: transparent;
        padding: 20px;
        border-top: 0;
        color: inherit;
    }

     .login-box .navbar-brand {
        display: none;
    }

}

@user_255905434970357761 that is weird. Can u show me your docker override file?

version: "3.2"

services:

  front:
    volumes:
     - /opt/seat-docker/custom/custom-layout-mini.css:/var/www/seat/public/custom-layout-mini.css
     - /opt/seat-docker/custom/custom-layout.css:/var/www/seat/public/custom-layout.css
     - /opt/seat-docker/custom/logo.png:/var/www/seat/public/logo.png

Did u bring it down and up again?

of course... over 100 times

That is weird then. Issue must be somewhere else. Check for logs or details. See if there is anything in troubleshooting.

Cant see any errors... I down then up the container to collect the last 10 mins of the log.

Well for some reason your seat is not loading this layout at all.

The part for the Corp name works.. I don't understand why the image won't load.....

I pm'ed u

Real quick, is your instance set behind CloudFlare? If so you’ll want to make sure to clear the cache via their site as it can cause issues with styling changes.

Yes i have been doing that a few times.

I just fix the issue. It was permission issue from the OS. I restored a snapshot from a few months ago, and the whole styling changes again. The first time i did get an error of 403 because it couldnt read the file.

he had os permission issue

Ah yep that'll do it

I haven't read the thread, but wouldn't it be better to improve the official docs instead of writing a guide on discord?

I have no idea who to poke to sort that out.

me?

Also I know it came up before as to what was wrong with the current guide not working.. But I did not fix it at the time and cant find that message atm. IIRC it was something about a missing div?

Login logo class is not defined and seat logo is forced on top. So if u will use url in the one on the website then after some modifications it will show up but under seat logo.
